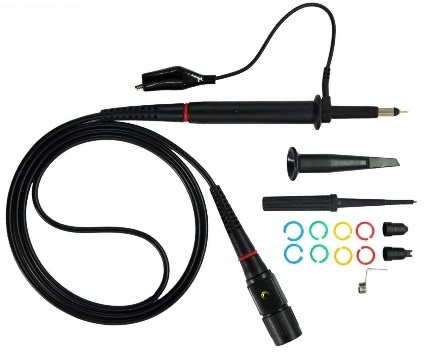

High Voltage Passive Oscilloscope Probe P4100
Standard Passive Oscilloscope Probe P6060 US$34.95     Free Express Shipping
Attenuation Ratio × 100
Bandwidth DC ~ 100 MHz
Input Impedance 100 MΩ (connected with oscilloscope with 1MΩ input impedance)
Input Capacitance 18.5 pF ~ 22.5 pF
Input Capacitance Compensation Range 15 ~ 45 pF
Length 1.2 m
Working Voltage 2KV DC+ AC Vp-p
Accessories include: a 12 cm snap-on rotating ground lead, a sprung hook, two marker rings, a probe compensation adjustment tool, two probe tip caps.

Examples

1. How to Measure Mains / Line Voltage and Harmonic Distortion using a USB Oscilloscope?
