Multi-Instrument: Multimeter



  1. Display the RMS voltage value of the current frame of data in Vrms, dBV or dBu.
  2. Display the sound pressure level of the current frame of data in dB, dB(A), dB(Z) or dB(C).
  3. Display frequency (via the Frequency Counter), RPM (Revolutions Per Minute), total counts (via the Counter), duty cycle, F/V voltage (via the Frequency Voltage Converter), Cycle RMS, Cycle Mean, Pulse Width for the current frame of data. You are allowed to configure the counter trigger level and the counter trigger hysteresis in order to rectify the analog signal to rectangular pulses before these analyses. Jitter statistics including peak(%), max. positive (%), max. negative (%), normalized standard deviation (%) are also measured.
  4. A frequency divider can be configured for each channel for the Frequency Counter, RPM meter, Counter, F/V converter.
  5. Display the RMS, Peak/PP, Crest Factor values for acceleration, velocity, displacement if acceleration, velocity or displacement sensors are used.
  6. Supports Multilingual User Interface under Windows 2000, XP, Vista, 7, 8, 8.1, 10, 11 and above. Currently supported languages are English, French, German, Italian, Portuguese, Spanish, Russian, Simplified Chinese, Traditional Chinese, Japanese and Korean.

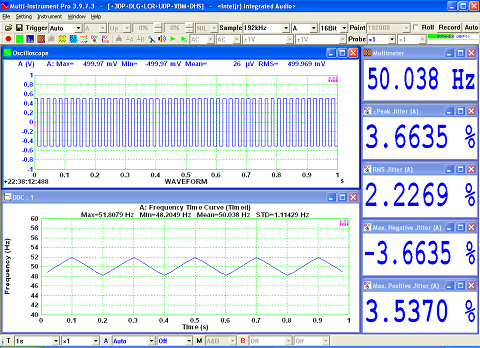

Frequency Counting and Jitter Statistics Measurement
