| Attenuation Ratio |
× 1, × 10 |
| Bandwidth |
DC ~ 60 MHz (× 10), DC ~ 6 MHz (× 1) |
| Input Impedance |
1 MΩ (× 1, connected with oscilloscope
with 1MΩ input impedance)
10 MΩ (× 10, connected with
oscilloscope with 1MΩ input impedance) |
| Input Capacitance |
14 pF ~ 18 pF (× 10), 70 pF ~ 120
pF (× 1) |
| Input Capacitance Compensation Range |
15 ~ 45 pF |
| Length |
1.2 m |
| Working Voltage |
× 1:＜200 Vp
× 10:＜600
Vp |

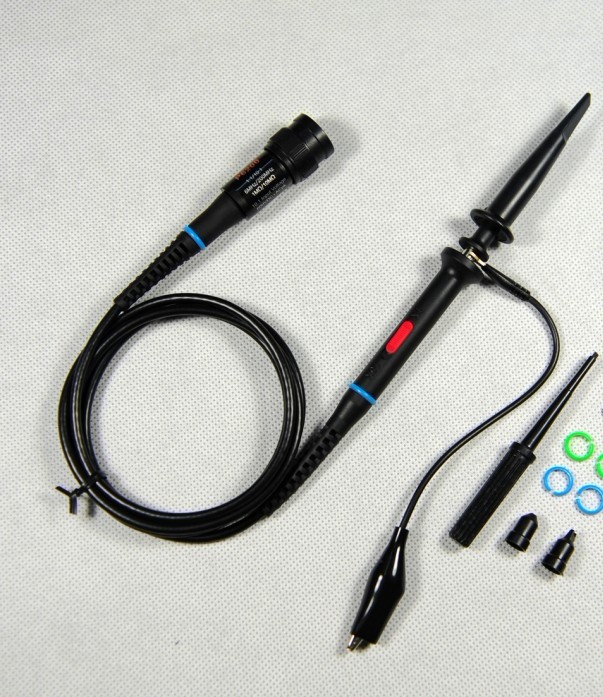

Accessories include: a 12 cm snap-on rotating ground lead, a sprung
hook, two marker rings, a probe compensation adjustment tool, two probe
tip caps.
