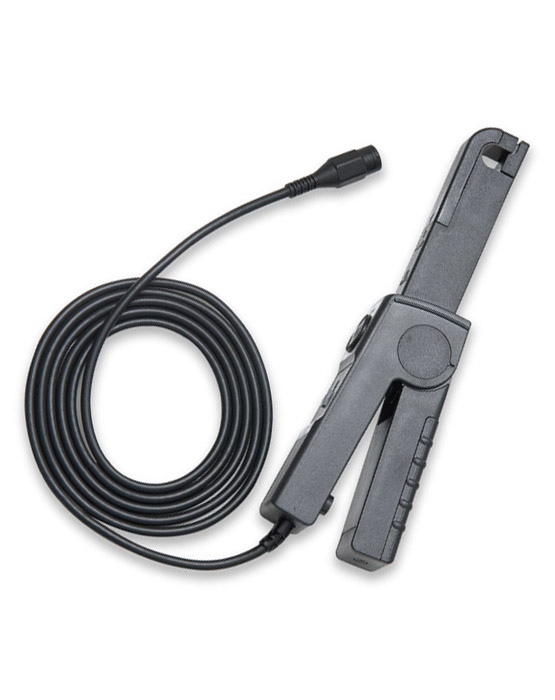

DC/AC Current Probe PT-710
Standard Passive Oscilloscope Probe P6060 US$379.95     Free Express Shipping



More current probes in the catalog Current Probes.
Price on request.
Sensitivity 10 mV/A 100 mV/A
Measuring Range 1A~100A peak 50mA~10A peak
Bandwidth DC ~ 100 kHz
Rising Time 4μs 3μs
Accuracy <= 40A: 4% ± 50mA
> 40A:  max. 15%  at 100A		 3% ± 50mA
Phase Error DC ~ 65Hz: <1° DC ~ 65Hz: <1.5°
Battery 9V (NEDA 1604A,IEC 6LR61)
Output Impedance (typical) can be connected to oscilloscopes with an input impedance 1MΩ || <100pF
Size Size 231 × 36 × 67 mm
Length of BNC Cable 2 m
Weight 330g with battery
