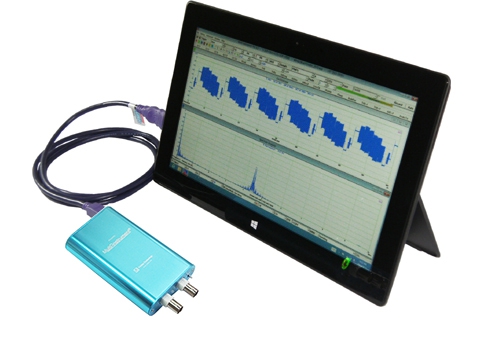

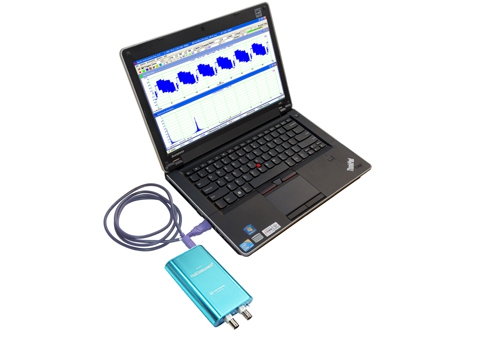

VT DSO-2810R

PC based USB 8~16Bit 100MSPS 40MHz Oscilloscope and Spectrum Analyzer
US$229.95 Free Express Shipping Brochure

Manual

Download and try the fully functional Multi-Instrument software using your sound card as the ADC and DAC device!
1. Instroduction

This is one of the second-generation USB DSO (USB oscilloscopes) designed and developed by Virtins Technology. This generation of USB DSOs features Virtins Technology’s unique hardware-based DSP algorithm which enhances the performance and functionality dramatically without adding extra hardware cost. When used in conjunction with Multi-Instrument^® software, the USB DSO converts any desktop, laptop, or tablet PC into a powerful oscilloscope, spectrum analyzer, multimeter, data logger, signal generator and so forth, all of which work simultaneously.

2. Package Contents

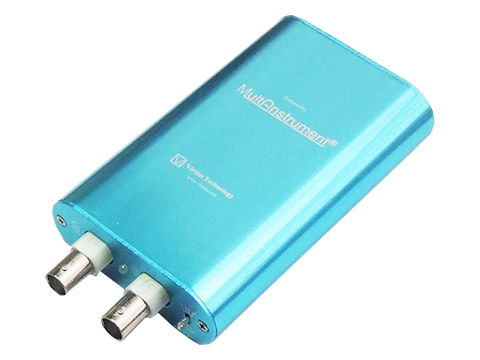

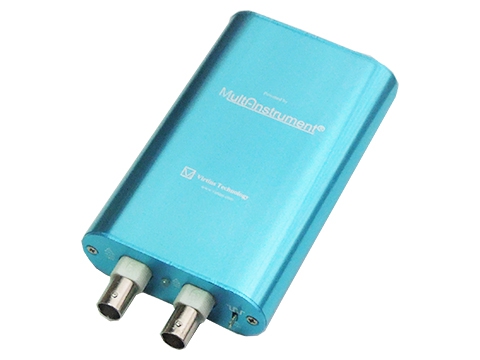

1) VT DSO-2810R unit with a hardware bundled Multi-Instrument Standard software license

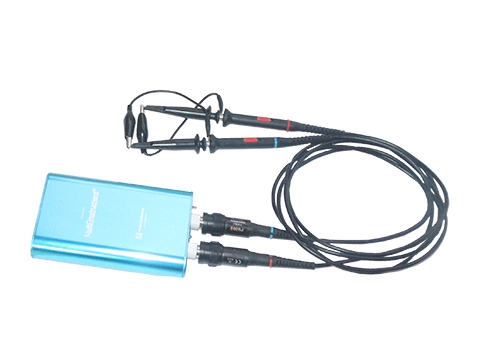

2) 2 × 60MHz Oscilloscope Probe P2060 with two switchable positions: × 1, × 10
3) USB cable (1.5 m)
4) CD (contains the copy-protected Multi-Instrument Software and VT DSO-2810R driver)

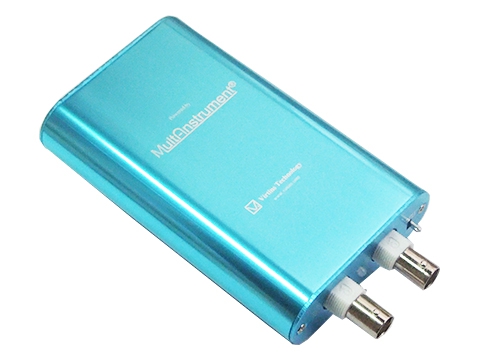

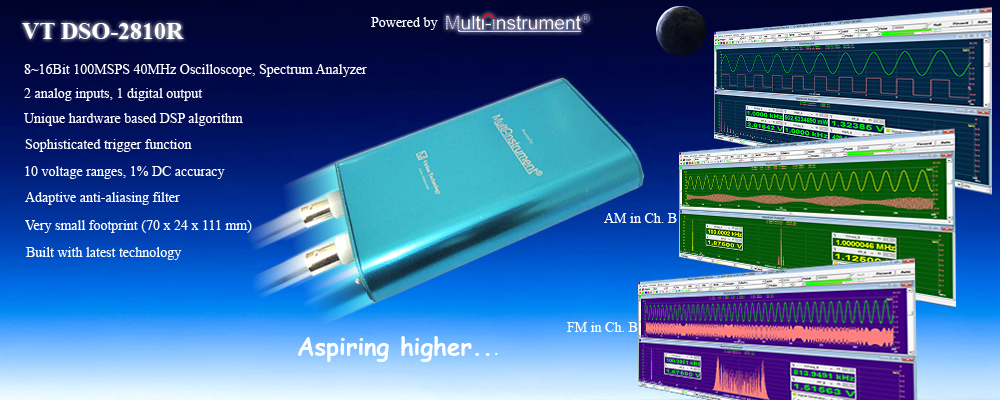

VT DSO-2810R, PC USB Oscilloscope, Spectrum Analyzer

Oscilloscope: 8~16Bit, 100MHz sampling rate, 40MHz bandwidth, 10 voltage ranges

Digital output that can generate square wave and MLS signal

Streaming mode supported, virtually unlimited storage space, elegant aluminum case

2 x 60MHz oscilloscope probes, 1 test lead for Signal Generator & a 1.5m USB cable

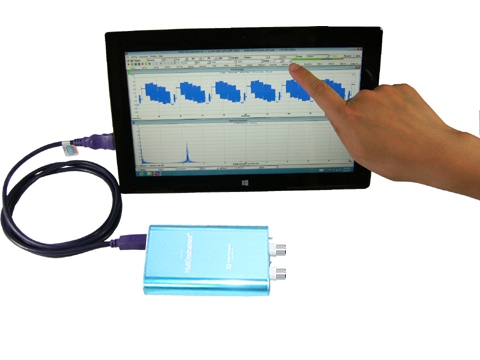

Touch to measure, compatible with MS Surface Pro, software & firmware upgradable

Powered by Multi-Instrument test & measurement virtual instrument software

Unique hardware based DSP algorithm, unmatchable 1% DC accuracy

Sophisticated triggering, adaptive anti-aliasing filter, compact & rugged design

by Virtins Technology

3. VT DSO-2810R Hardware Specifications

Oscilloscope Horizontal (Time) Axis
Real Time Sampling Frequency (fs)		Single Analog Channel 100 MHz Single or Dual Analog Channels 50 MHz, 40 MHz, 20 MHz, 10 MHz, 5 MHz, 4 MHz, 2 MHz, 1 MHz, 500 kHz, 400 kHz, 200 kHz, 100 kHz, 50 kHz, 40 kHz, 20 kHz, 10 kHz, 5 kHz, 4 kHz, 2 kHz, 1 kHz, 500 Hz, 400 Hz, 200 Hz, 100 Hz, 50 Hz, 40 Hz, 20 Hz, 10 Hz, 5 Hz, 4 Hz, 2 Hz, 1 Hz
Equivalent Sampling Frequency		= [Real Time Sampling Frequency] × [Number of Frames Persisted]. Maximum 20 GHz, for repetitive signals whose maximum frequency is less than ¼ of the real time sampling frequency. Not valid for the case of post-trigger.
Buffer Size	Normal Frame Mode	Analog	Single Channel 40000 samples (8 bits) 20000 samples (16 bits) Dual Channels 20000 samples / channel (8 bits, Non-ALT mode) 10000 samples / channel (16 bits, Non-ALT mode) 40000 samples / channel (8 bits, ALT mode) 20000 samples / channel (16 bits, ALT mode)
	Record Mode (Streaming Mode)	Limited only by hard disk space available and maximum file size allowed by the operating system. Maximum sampling frequency for continuous streaming is computer speed and software setting dependent and typically 10 MHz (single channel, 8 bit) in Multi-Instrument.
	Roll Mode (Streaming Mode for Low Frequency Signals)	Limited only by the computer memory available. Roll Mode is allowed when fs ≤ 1MHz and [Record Length] ≥ 4 × [Roll Width]. Maximum sampling frequency for continuous streaming is computer speed and software setting dependent.
Sweep Time		10 ns ~ 500 s (Non-Streaming Mode)
Sampling Frequency Accuracy		± 50 ppm

Oscilloscope Vertical (Analog) Axes

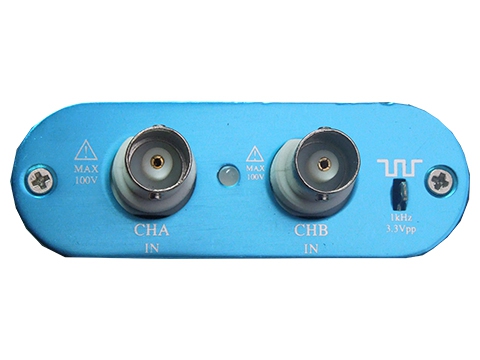

Number of Channels		2 (i.e. Ch. A and Ch. B)
ADC Bit Resolution		8 Bits
Enhanced ADC Bit Resolution (available only when Sampling Frequency is less than 40 MHz)		16 Bits If this option is selected, the effective bit resolution increases from 8 bits to up to 16 bits as the sampling frequency goes down. (Assuming white noise in the signal)
		Sampling Frequency	Effective Bit Resolution		Sampling Frequency		Effective Bit Resolution
		≥ 40 MHz	8 Bits		≤ 10 MHz		9 Bits
		≤ 2.5 MHz	10 Bits		≤ 625 kHz		11 Bits
		≤ 156 kHz	12 Bits		≤ 39 kHz		13 Bits
		≤ 9.8 kHz	14 Bits		≤ 2.4 kHz		15 Bits
		≤ 610 Hz	16 Bits
Bandwidth	fs > 20 MHz	40 MHz
	fs ≤ 20 MHz	8 Bits		No Effective Bit Resolution Enhancement		40 MHz
		8 Bits		Effective Bit Resolution Enhancement		6 ~ 10 MHz
		16 Bits		Effective Bit Resolution Enhancement		about 0.443 fs
Voltage Measuring Range (Full Scale)		± 50 mV, ± 100 mV, ± 200 mV, ± 500 mV, ± 1 V, ± 2 V, ± 5 V, ± 10 V, ± 20 V, ± 50 V
Max. Allowed Voltage		± 100 V (DC + AC peak), derated above 100kHz
DC Accuracy		±1%
Coupling Type		AC / DC
Input Isolation		No (Isolation can be achieved through a USB isolator)
Terminal Type		Referenced Single-Ended, BNC
Input Impedance		1 MΩ , 15 pF
Zero Calibration		Through software. Individually done at factory
Gain Calibration		Through software. Individually done at factory

Oscilloscope Trigger
Trigger Detection Method	Digital
Trigger Source	Ch. A, Ch. B, ALT
Trigger Mode	Auto, Normal, Single, Slow
Trigger Edge	Rising, Falling
Trigger Level	Adjustable within full scale
Pre-Trigger	-100% ~ 0% of Record Length
Post-Trigger	0 ~ 100% of Record Length
Trigger Frequency Rejection	Nil: No Rejection HFR: High Frequency Rejection, cut off at 0.11fs NR0: Noise Rejection, hysteresis = 1% of half of full scale NR1: Noise Rejection, hysteresis = 2% of half of full scale NR2: Noise Rejection, hysteresis = 4% of half of full scale NR3: Noise Rejection, hysteresis = 8% of half of full scale NR4: Noise Rejection, hysteresis = 16% of half of full scale HN0: HFR + NR0 HN1: HFR + NR1 HN2: HFR + NR2 HN3: HFR + NR3 HN4: HFR + NR4 HNX: selectable HFR + adjustable hysteresis = 0% ~ 25% of half of full scale Note: The specified hysteresis may be modified internally to ensure [Trigger Level (%)] – [Hysteresis (%)] ≥ -100% at rising edge, or [Trigger Level (%)] + [Hysteresis (%)] ≤ 100% at falling edge.

Oscilloscope Dynamic Performance (Typical)
THD	fs=100 kHz, f=1 kHz, from 2^nd to 20^th order, full-scale input: 8 bits (without bit resolution enhancement): ≤ -55 dB 8 bits (with bit resolution enhancement): ≤ -56 dB 16 bits: ≤ -59 dB
IMD (250 Hz + 8 kHz, 4:1)	fs=100 kHz, from 2^nd to 3^rd order, full-scale input: 8 bits (without bit resolution enhancement): ≤ -51 dB 8 bits (with bit resolution enhancement): ≤ -52 dB 16 bits: ≤ -57 dB
IMD (19 kHz +20 kHz, 1:1)	fs=100 kHz, 2^nd order only, full-scale input: 8 bits (without bit resolution enhancement): ≤ -65 dB 8 bits (with bit resolution enhancement): ≤ -65 dB 16 bits: ≤ -78 dB
SFDR	fs=100 kHz, f=1 kHz, full-scale input: 8 bits (without bit resolution enhancement): ≥ 61 dB 8 bits (with bit resolution enhancement): ≥ 61 dB 16 bits: ≥ 62 dB
Crosstalk	≤ -45 dB (at the same voltage measuring range for full bandwidth)
Noise	For voltage measuring ranges ± 50 mV and above: 8 bits (without bit resolution enhancement): ≤ ± 3 counts (± 1%) 8 bits (with bit resolution enhancement, fs =100 kHz): ≤ ± 2 counts (± 0.8%) 16 bits (fs =100 kHz): ≤ ± 0.3 8-bit count (± 0.1%) For voltage measuring ranges ± 10 mV and ± 20 mV: 8 bits (without bit resolution enhancement): ≤ ± 15 counts (± 6%) 8 bits (with bit resolution enhancement, fs =100 kHz): ≤ ± 9 counts (± 4%) 16 bits (fs =100 kHz): ≤ ± 1 8-bit count (± 0.4%)

Signal Generator General
Number of Channels	1 (digital signal only)
Coupling Type	DC
Output Isolation	No
Terminal Type	Referenced Single-Ended, probe calibration connector
Output Impedance	About 600 Ω
Overvoltage Protection	± 35 V

Signal Generator - Digital (when Signal Generator is not running)
Voltage Range		0 ~ 3.3 V, not adjustable
Output Signal Frequency Accuracy		± 50 ppm
Bandwidth		13 MHz
Rise Time (10% ~ 90%)		< 50 ns
Waveform	Square	Signal Frequency	25 MHz / N, (N=1, 2, 3, ….25000)
	MLS	Sampling Frequency	25 MHz / N, (N=1, 2, 3, ….25000)

General

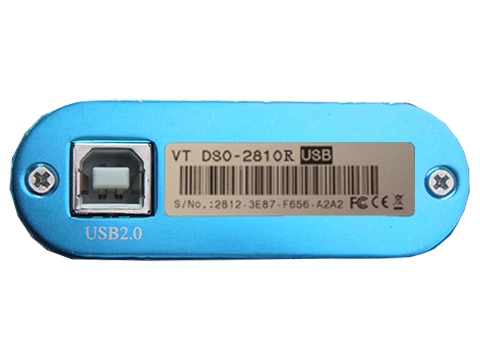

Interface	USB 2.0 High Speed / USB 1.1 Full Speed / USB Isolator
Device Category in Multi-Instrument	ADC Device	VT DAQ 1
	DAC Device	Not Applicable
Firmware Upgradable	Yes
Power	Bus powered by USB port, no external power source required.
Power Consumption	Max. 1.5W
Dimensions	111 mm (L) × 70 mm (W) × 24 mm (H), anodized aluminum case
System Requirement	Windows XP, Vista, 7, 8, 8.1, 10 or 11, 32 bit or 64 bit
Operating Temperature	0° C ~50° C

4. P2060 Oscilloscope Probe Hardware Specifications

Attenuation Ratio	× 1, × 10
Bandwidth	DC ~ 60 MHz (× 10), DC ~ 6 MHz (× 1)
Input Impedance	1 MΩ (× 1, with VT DSO connected) 10 MΩ (× 10, with VT DSO connected)
Input Capacitance	14 pF ~ 18 pF (× 10), 70 pF ~ 120 pF (× 1)
Input Capacitance Compensation Range	15 ~ 45 pF
Length	1.2 m

Accessories include: a 12 cm snap-on rotating ground lead, a sprung hook, two marker rings, a probe compensation adjustment tool, two probe tip caps.

5. Examples

1) Measurements of PAL Composite Video Signals

PAL Composite Video Signal Measured by VT DSO-2810

PAL Composite Video Signal Measured by VT DSO-2810

2) Measurements of a 500Hz sine wave and a 1kHz square wave under ALT trigger mode

500Hz Sine and 1kHz Square waves measured by VT DSO-2810
