Digital IEPE Interface Based Measurement Systems |

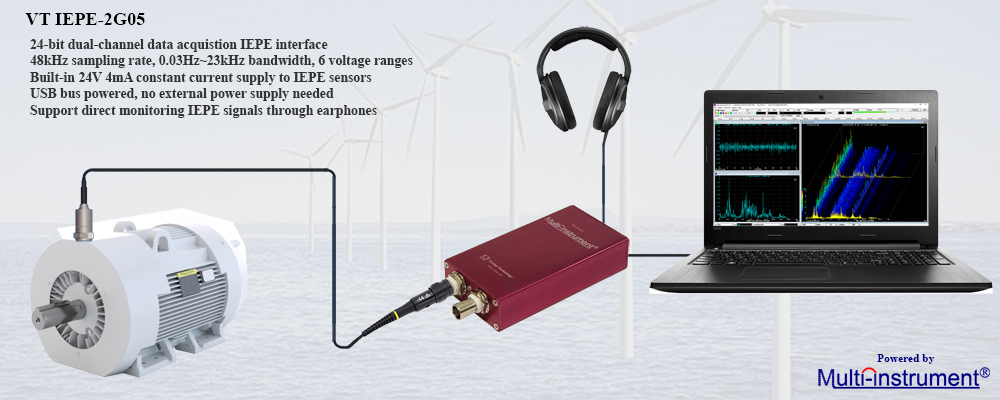

VT IEPE-2G05
PC USB 24-bit dual-channel data acquisition IEPE interface: 48kHz
sampling rate, 0.03Hz~23kHz bandwidth, 6 voltage ranges, built-in
24V 4mA constant current supply to IEPE senesors, USB bus powered |
| Digital Charge Amplifier Based
Measurement Systems |

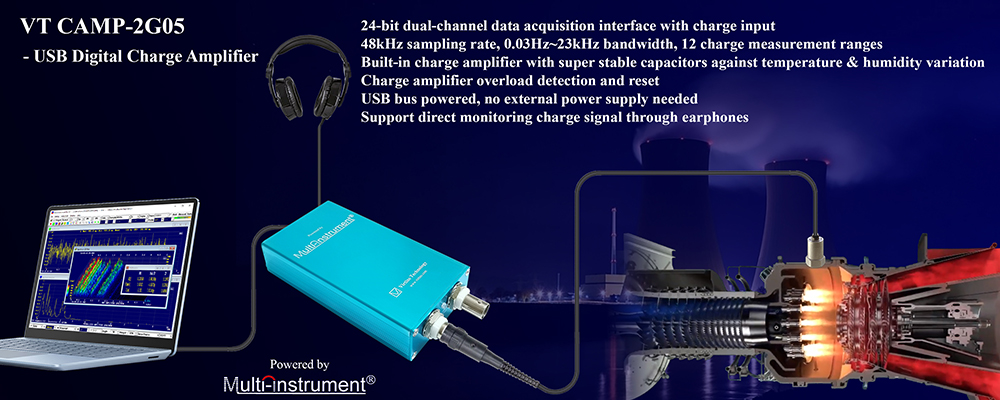

VT CAMP-2G05
PC USB 24-bit dual-channel data acquisition interface with charge
input: 48kHz sampling rate, 0.03Hz~23kHz bandwidth, 12 charge
ranges, super stable charge integration capacitor against
temperature and humidity variation, overload detection and reset,
USB bus powered |
| Digital Accelerometner
Based Vibration Measurement Systems |
Digiducer 333D01
PC USB 24-bit all-in-one accelerometer: 48kHz sampling rate, 0.9Hz~15kHz bandwidth, ±20g and ±10g full-scale ranges, USB bus powered |

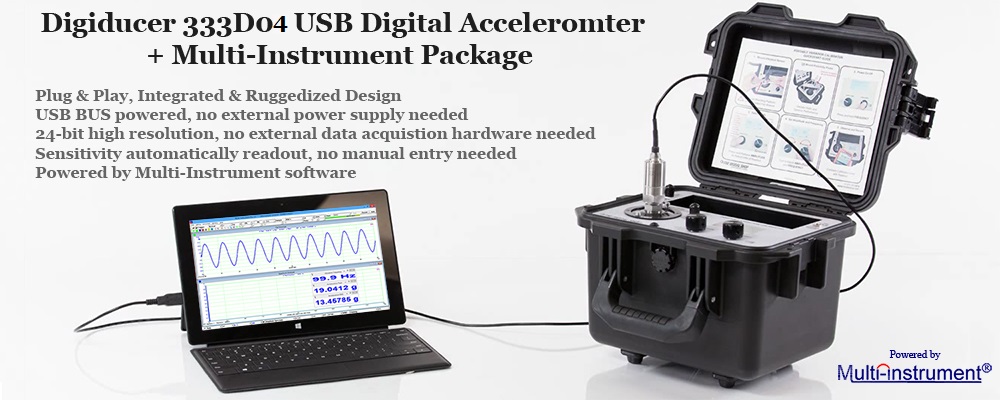

Digiducer 333D04
PC USB 24-bit all-in-one accelerometer: 48kHz sampling rate, 0.9Hz~15kHz bandwidth, ±100g and ±50g full-scale ranges, USB bus powered |
|
